CFP Laminated Honeycomb Panel
一、 INTRODUCTION

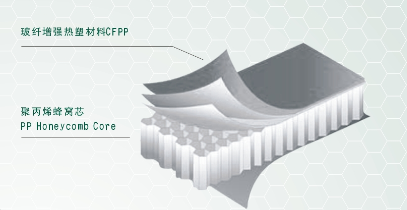

CFP laminated honeycomb panel is a typical “sandwich” structure plate, with continuous glass fiber reinforced polypropylene sheet as skins and honeycomb core, which ranges in thickness from 6mm-100mm.
二、 FEATURES
1. Light weight, high compressive strength
2. Excellent corrosion resistance
3. Excellent compression and shock resistance
4. Environmentally safe, no styrene and VOCs
5. Completely recyclable
6. Easy to process, such as cut and repair
Sound absorption and sound-insulation
三、 PARAMETER
|
Items |
Units |
FW10G-0.6 |
FW15G-1.0F |
FW18G-0.6 |
FW25G-1.0 |
Test Method |
|
Weight per Unit Area |
Kg/m2 |
3.2 |
4.3 |
4.1 |
4.6 |
|
|
Maximum Flexural Force |
N(0°) |
279 |
1138 |
663 |
1138 |
ASTM D790 |
|
N(90°) |
270 |
798 |
751 |
670 |
||
|
Flexural Strength |
MPa |
14.44 |
24.02 |
11.01 |
9.3 |
ASTM D790 |
|
14.08 |
17.38 |
12.49 |
5.4 |
|||
|
Compressive Strength |
Mpa |
3.08 |
2.5 |
2.88 |
1.5 |
GB/T 1453 |
|
Impact Strength |
Kg.m |
1.0 |
1.66 |
1.0 |
1.66 |
ASTM D3763 |
|
Flame Retardant Rating |
mm/mm |
D-35 |
A0 |
D-35 |
D-35 |
GB8410 |
|
Operating Temperature |
℃ |
-40-+90 |
|
|||
四、 APPLICATION
Transportation, refrigerator, container service, building decoration.
