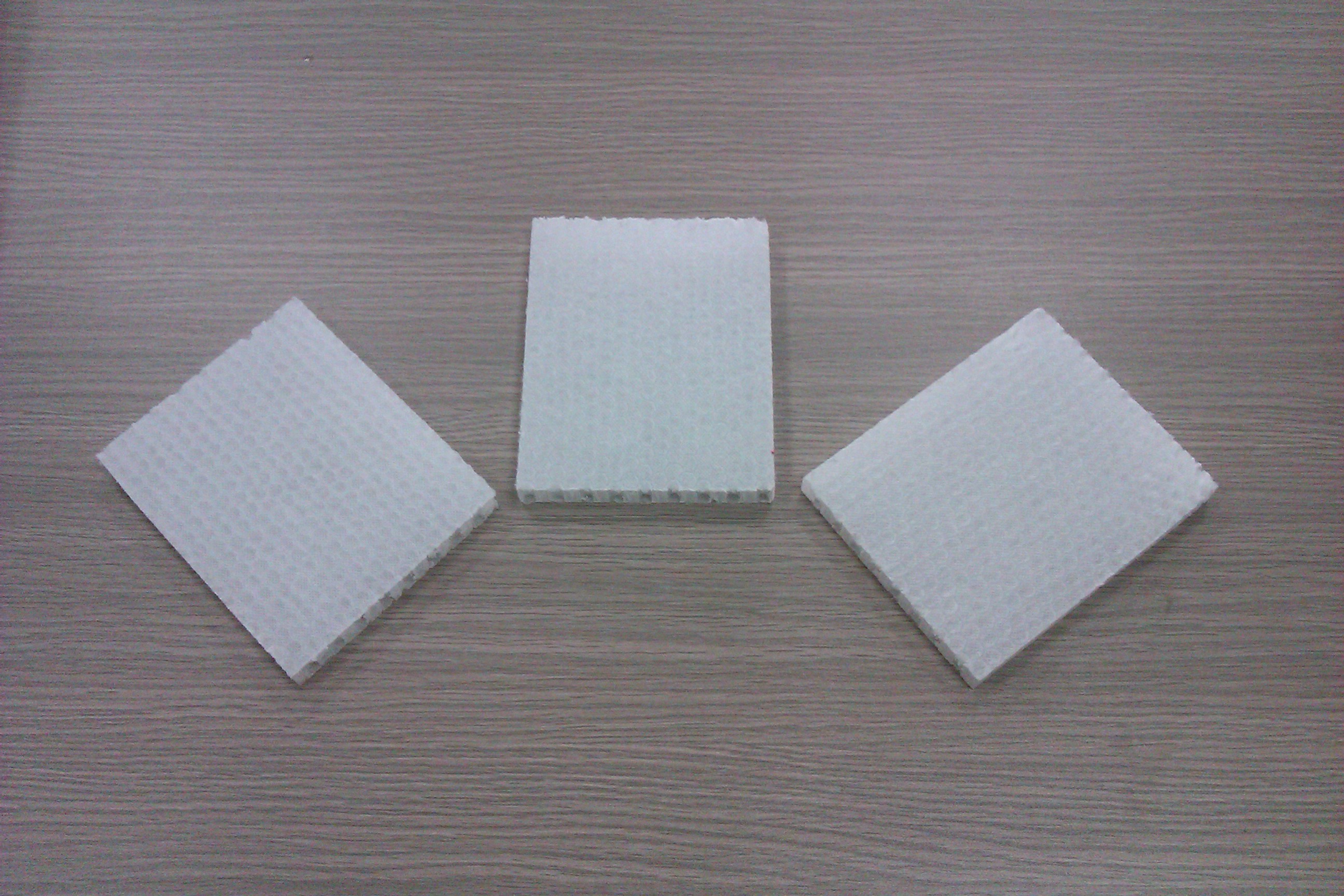

PP(Polypropylene) Honeycomb Panel
一. INTRODUCTION
Honeycomb Panel is made of PP honeycomb and covering film and nonwoven fabric on the two surfaces. It is widely used in Europe , USA and other developed countries. As it has good property on light-weight, environmentally friendly etc., PP Honeycomb Panel has been widely used in van, architectural, outdoors, home furnishing, industrial product and high-end packing materials etc.
二. FEATURES
1. Light weight, high compressive strength
2. Excellent corrosion resistance
3. Excellent waterproof and moistureproof performance
4. Excellent sound isolation performance
5. Excellent compression and shock resistance
6. Excellent Insulation performance
三. SPECIFICATION
|
Dimensions |
3000x1500mm （Maximum Dimension） |
|
Thickness |
5-300mm |
|
Cell Diameter |
8mm,10mm,12mm |
|
Honeycomb Density |
80Kg/m3, 120Kg/m3 |
|
panel covering material |
Polyester Non woven fabrics |
|
Desity of fabric |
30 g/m², 60 g/m² |
For sea container transporting, 2300X1150 (MM) is recommended.
四. PARAMETER
|
Cell diameter(mm) |
8 |
|
Density( Kg/m3) |
80 |
|
Flatwise tensile strength（MPa） |
0.70 |
|
Compressive Strength(MPa) |
1.30 |
|
Modulus of compression(MPa) |
45 |
|
Shear Strength(MPa) |
0.55 |
|
Shear Modulus （MPa） |
15 |
|
Effective Temperature( ℃ ) |
-40 — +80 |
|
Thermal Insulation U-value(W/m2k) |
2.2 |
五. APPLICATION
It can be widely used as building board, construction partition, ceiling , Furniture panels, Fairing, air curtain, Air filtration and purification, Drainage Pavement of park and garden, parking pavement ,Showcase , Van body, Roof and trunk of car ,Radar cover etc.
